| Brand | SEYA | VSWR | 1.5Max |
| Surface treatment | Ni | Impedance | 50Ω |

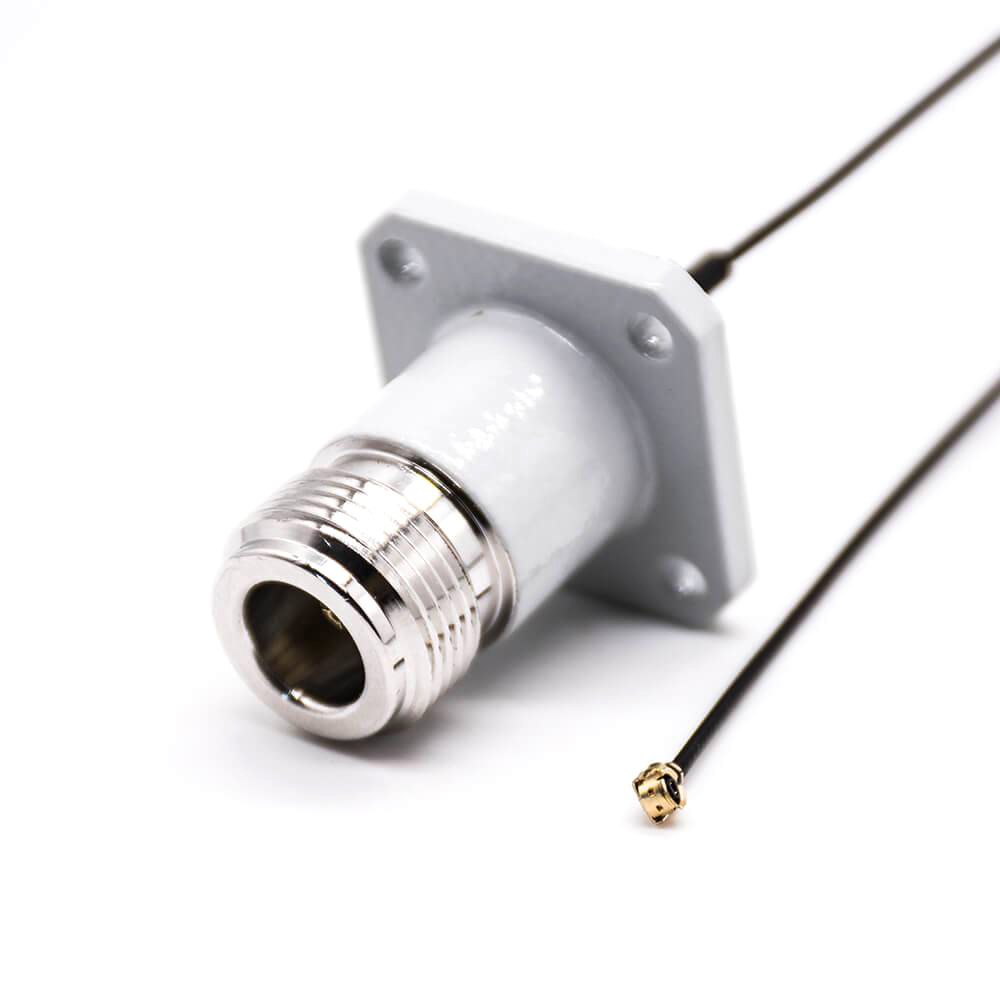

| RF Connector | N to MHF-1 | Colour | Nickel color |
| Frequency Range (GHz) | DC~7.2GHz | ||
| Impedance (Ω) | 50Ω | ||
| V.S.W.R | DC~4GHz≤1.3 4~7GHz≤1.5 |
||
| Insertion loss | DC~4GHz≥-17dB 4~7GHz≥-13dB |
||
| Wire type | RF1.13(Customizable) | ||
| Connector Body | Brass | ||
| RF Connector | N Jack to MHF-1(Customizable) | ||
| Operating Temp | -40~+85 ℃ | ||
| Storage Temp. | -40~+85 ℃ | ||
