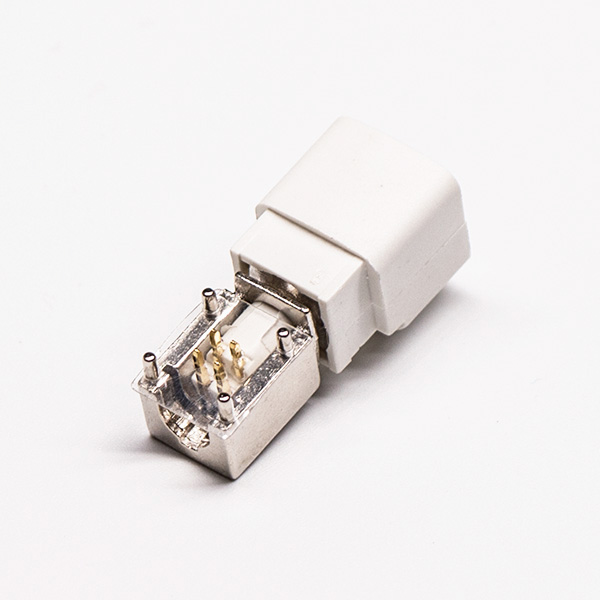

Name: SY-Fakra-006
Date: 2024-06-24 15:12
Fakra connector is a connector designed specifically for automotive electronic applications, which can achieve fast, stable, and reliable data transmission between automotive electronic systems. The characteristics of Fakra connectors are: high reliability, support for high-speed data transmission, and support for multiple protocols, including CAN, LIN, MOST, etc; It has good electromagnetic compatibility and can effectively suppress electromagnetic interference; It has good durability and can resist harsh environmental conditions; It has good tensile resistance and can resist external tension to ensure the stability of the connection; It has good temperature resistance and can resist high temperature environments; It has good pressure resistance and can resist external pressure to ensure the reliability of the connection; It has good moisture resistance and can resist humid environments; It has good corrosion resistance and can resist strong corrosive chemicals.
Brand SEYA VSWR /
Surface treatment Au/Ni Impedance 50Ω
RF Connector Fakra Jack Colour Nickel color
Frequency Range (GHz) DC~6GHz
Impedance (Ω) 50Ω
rated voltage 225 VRMS
voltage withstand 1000 Volts
insulance 5000 MQ min
insertion force 20 N max
Withdrawal force 10 N min
Mating durability More than 500 times (when beryllium copper contacts are used)
Temperature range  -65~+165 ℃
