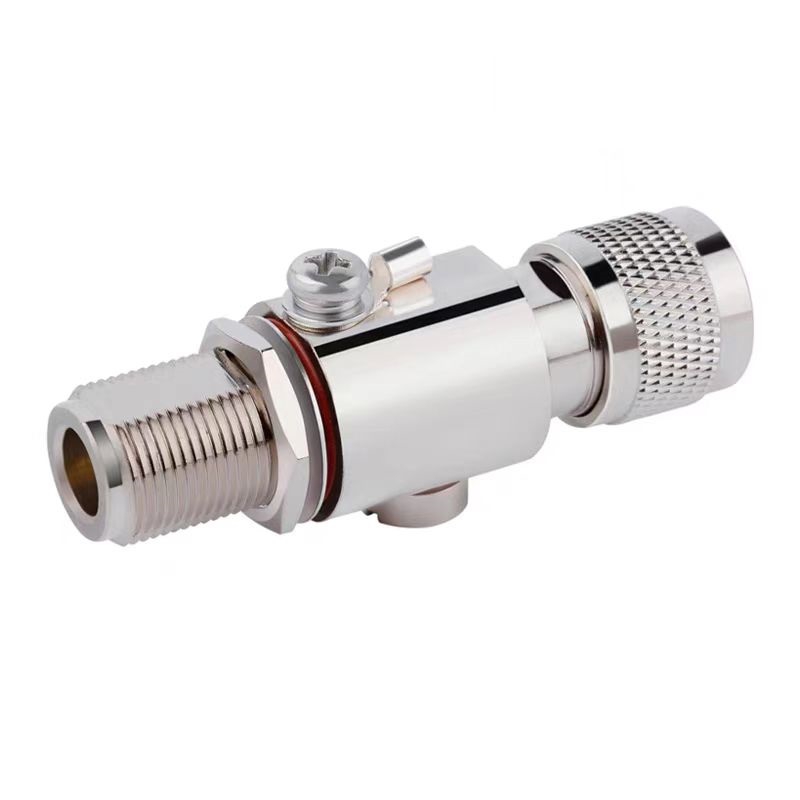

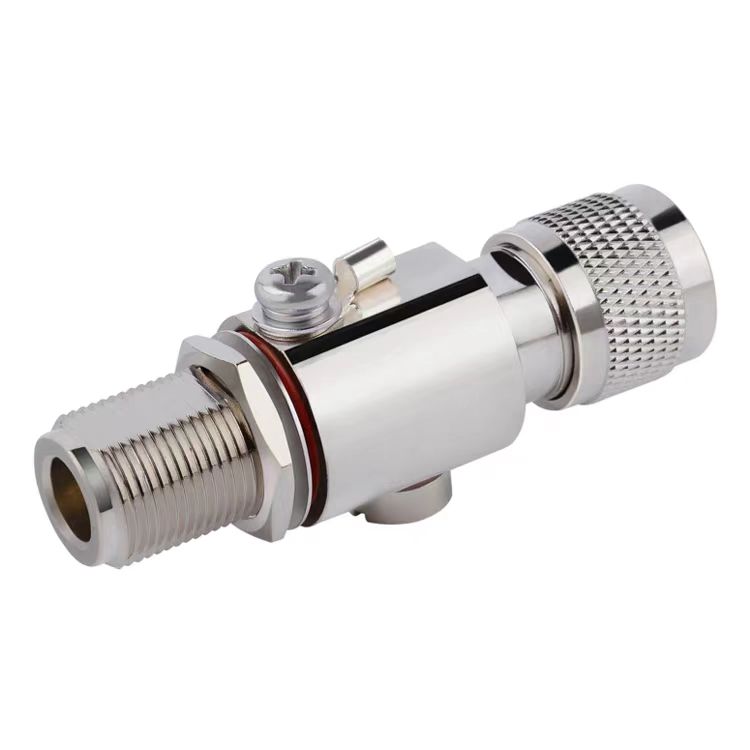

Name: SY-BLQ-006
Date: 2024-07-18 16:07
Electrical parameters
Frequency Range (GHz) 0-2.5GHz
working voltage 70VDC
Nominal discharge current 5kA
Maximum flow capacity 10ka
Protection level 200V
response time 100ns
insertion loss  0.2dB
VSWR 1.2
working temperature  -40~+85℃
Working humidity ≤95%
Installation method Connected in series between the protected equipment and the signal channel

The antenna lightning arrester has

Wide operating frequency band: The antenna lightning arrester can effectively operate over a wide frequency range, ensuring stable protection at different frequencies. ‌

Large current carrying capacity and low residual voltage level: It has a large current carrying capacity and can maintain a low voltage level under lightning strikes, effectively protecting equipment from damage. ‌

Low insertion loss and low standing wave ratio: ensuring the efficiency and quality of signal transmission, reducing signal attenuation, and maintaining good signal strength. ‌

Fast response time: able to quickly respond to lightning or surge situations and protect equipment in a timely manner. ‌

Accurate voltage limitation: It can precisely control the voltage limitation to ensure that the equipment can still operate safely in the event of lightning or power surges. ‌

Stable performance and reliable operation: It can maintain stable performance even in harsh environments, ensuring long-term reliable protection. ‌

Small size and light weight: easy to install and maintain, reducing the occupation of installation space. ‌

Multi level protection: Provides multi-level protection to further enhance the protection level of the equipment. ‌

Low capacitance and inductance design: reduces the impact on signal transmission, maintains high transmission frequency and low attenuation coefficient. ‌

Durable conductive metal shell: has good shielding effect to prevent external interference. ‌

These advantages make antenna lightning arresters an ideal choice for protecting communication and broadcasting equipment from lightning and surge damage
